Nested IF

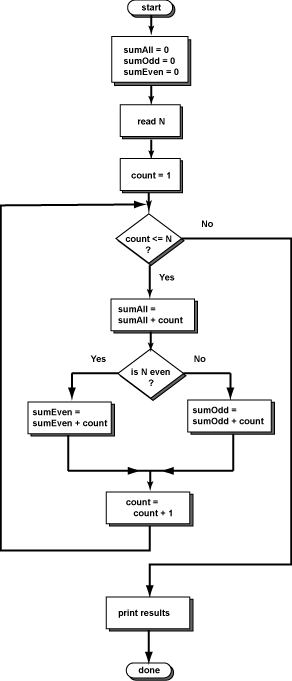

The following flowchart is a refinement of the first one. It explicitly shows three sums, and how each sum is handled. The loop body shows that the current value of count is always added to sumAll. An if statement determines if count is added to sumEven or sumOdd.

An if statement that is part of a loop body is a nested if. (Another type of nested if is when an if statement is part of another if statement.)

Play with the flowchart and see if it works. Pick some small integer, perhaps N==3, and follow the flowchart by hand. Then try an unexpected value, like N==1 and see if the logic works.
