What Swing classes will be used in the program?

Answer:

  • JFrame
  • JButton

Picture of the Relationships

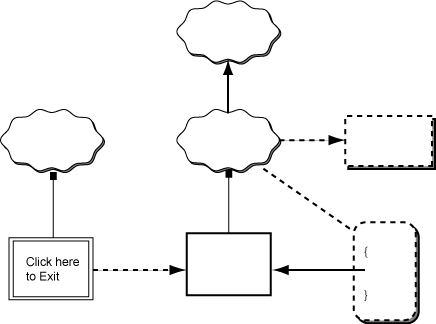

ButtonQuitter Relationships

Here is a picture of the relationships. Unfortunately the boxes and the arrows are not labeled. The name of the frame class is ButtonQuitter. You will need to fill in the labels. Use labels from the following selection:

  • JFrame
  • extends
  • ButtonQuitter
  • ActionListener
  • instance of
  • implements
  • main
  • static
  • JButton
  • action events
  • buttonQuitter frame
  • refers to

QUESTION 20:

Label the relationship diagram. If you have a printer, print out this page and use pencil. Otherwise, do the work mentally.
